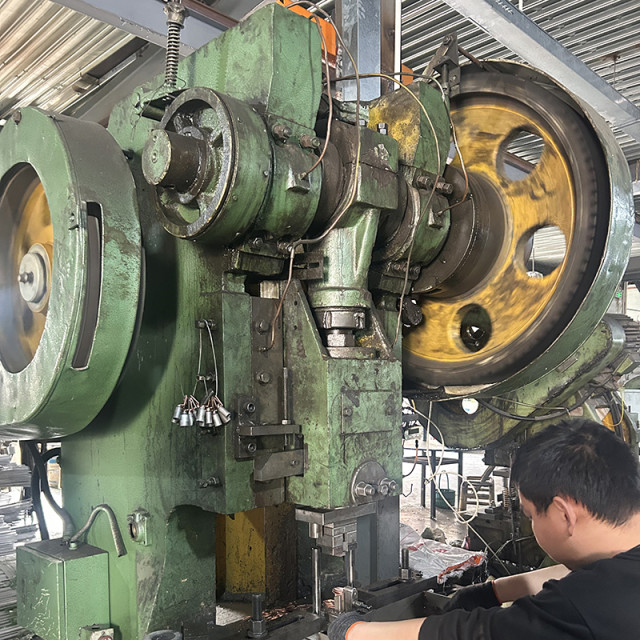

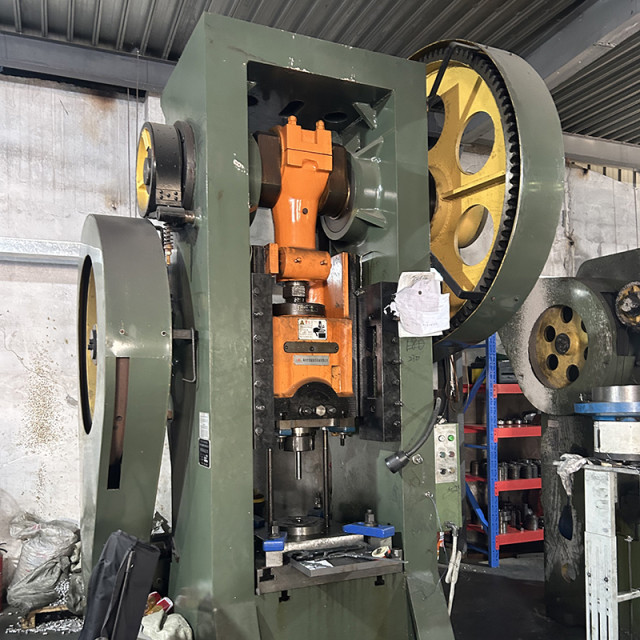

Standard & Mid-Speed Punching Machine: Versatile Solutions for Efficient Metal Forming
Our standard and mid-speed punching machines are engineered to deliver consistent precision, reliable performance, and cost-effectiveness for a wide range of metal stamping applications. Designed for general manufacturing needs—from small-batch prototypes to medium-volume production—these machines balance speed, durability, and ease of operation, making them ideal for industries like automotive parts, electronics, hardware, and household appliances worldwide.
Core Advantages & Performance Highlights
- Balanced Speed & Precision: Mid-speed models offer 200–600 strokes per minute (SPM) (standard models: 100–300 SPM), striking the perfect balance between productivity and accuracy. Ensures tight tolerances (±0.01mm–±0.05mm) for consistent part quality across batches.
- Broad Material Compatibility: Efficiently processes various metals, including carbon steel (up to 6mm thickness), stainless steel (up to 4mm), aluminum (up to 8mm), copper, and brass. Suitable for blanking, piercing, bending, forming, and shallow drawing operations.
- User-Friendly Operation: Equipped with intuitive HMI (Human-Machine Interface) touchscreens, simple parameter adjustment, and automatic lubrication systems. Minimizes operator training time and reduces human error in daily use.
- Robust & Durable Build: Constructed with high-strength cast iron frames and hardened steel sliding components, ensuring stable operation even under long-term, continuous use. Reduces vibration during stamping to protect tooling and extend machine lifespan (average service life: 8–12 years).
- Cost-Effective Design: Optimized energy consumption (5–15kW power rating) and low maintenance requirements lower total operational costs. No complex advanced features (compared to high-speed models), making initial investment more accessible for small-to-medium manufacturers.
- Tooling Flexibility: Compatible with standard and custom dies (die height range: 150mm–350mm). Quick die-change systems (optional) reduce setup time by 30–40%, improving efficiency for multi-part production.
Product Specifications
- Machine Types:
- C-Frame Punching Machines (space-saving, ideal for small-to-medium workpieces)
- H-Frame Punching Machines (higher rigidity, suitable for heavier materials and larger workpieces)
- Key Technical Parameters:
- Capacity (Nominal Force): 100kN–500kN (standard models: 100kN–250kN; mid-speed models: 200kN–500kN)
- Stroke Length: 20mm–100mm (adjustable for different forming needs)
- Maximum Workpiece Size: 500mm×800mm–1200mm×2000mm (varies by frame type)
- Throat Depth: 150mm–400mm (C-Frame); 200mm–500mm (H-Frame)
- Speed Range: 100–300 SPM (standard); 200–600 SPM (mid-speed)
- Control System:
- PLC: Mitsubishi/Siemens basic industrial PLC with multi-language support (English, Spanish, German, Chinese)
- Safety Features: Emergency stop buttons, two-hand start operation, safety guards, and overload protection. Complies with CE, ISO 13849-1, and ANSI B11.12 standards.
- Power & Installation:
- Power Supply: 380V/400V/480V, 3-phase, 50/60Hz (customizable for regional voltage)
- Floor Space Requirement: 2m×3m–4m×6m (depends on machine size)
Wide-Ranging Industrial Applications
Our standard/mid-speed punching machines serve as workhorses in diverse manufacturing sectors:
- Automotive Components: Stamping of brackets, clips, washers, small gears, and sensor housings.
- Electronics & Electrical: Production of terminal blocks, connector shells, circuit board brackets, and transformer cores.
- Hardware & Fasteners: Manufacturing of bolts, nuts, hinges, locks, and metal fastener blanks.
- Household Appliances: Forming of metal parts for refrigerators (shelves, brackets), washing machines (motor mounts), and cookware (handles, rims).
- Medical & Consumer Goods: Small-scale stamping of medical device components (syringe parts, instrument clips) and consumer metal goods (keycaps, watch cases).
- Aerospace & Defense (Light-Duty): Prototyping and low-volume production of small structural brackets and fasteners.
Customization & Service Support
- Tailored Configurations: Offer optional upgrades, including automatic feeding systems (roll feed/coil feed), die protection sensors, and workpiece collection conveyors. Customize machine size and force to match specific production needs.
- Installation & Training: On-site installation, commissioning, and 3–5 days of operator training to ensure smooth startup. Provide detailed operation manuals and video tutorials.
- After-Sales Service: Global technical support (24/7 via phone/email), spare parts supply (delivery within 3–10 days), and annual maintenance checks.
- Warranty: 1.5-year standard warranty on main components (frame, hydraulic/pneumatic systems); 1-year warranty on electrical parts. Extended warranty options available.
- Compliance & Certification: All machines meet CE, ISO 9001, and local safety standards (e.g., OSHA for North America, GB for China).
Why Choose Our Standard/Mid-Speed Punching Machine?
With over 15 years of experience in metal forming equipment, we focus on delivering reliable, cost-effective solutions that meet the real needs of general manufacturers. Our punching machines have been adopted by 300+ customers in 25+ countries, with a 95% satisfaction rate for performance and durability. Whether you’re a small workshop starting out or a medium factory expanding production, our machines offer the precision and efficiency to boost your output—without the high cost of advanced high-speed models.
Contact our sales team today to request a product demo, technical datasheet, or personalized quote!
