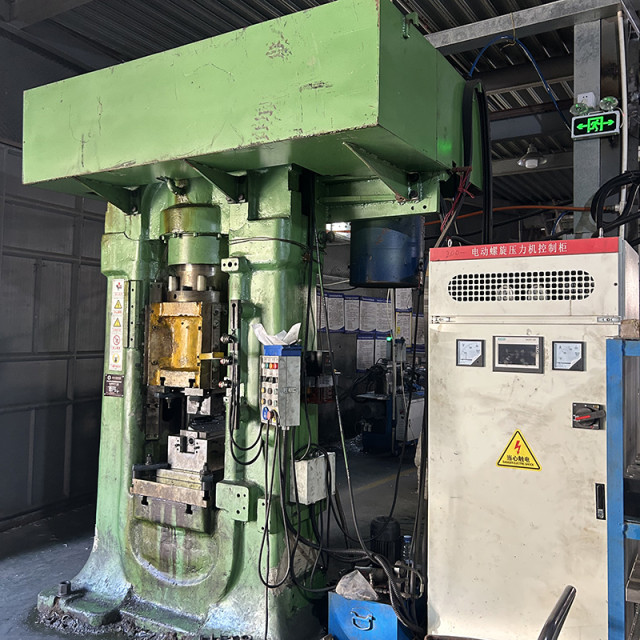

200T Friction Press: Reliable Power for Precision Metal Forging
Our 200T friction press is a heavy-duty industrial machine engineered to deliver exceptional pressure, stable operation, and versatile performance for metal forging, shaping, and forming applications. With a nominal force of 200 tons, it balances robust mechanical design with user-friendly control, making it an ideal choice for industries like automotive parts manufacturing, hardware production, tool & die making, and aerospace component forging across global markets.
Core Advantages & Performance Highlights
- Powerful Forging Capacity: Boasts a 200-ton nominal pressure and 500-ton maximum instantaneous pressure, enabling efficient processing of medium-thickness metals (carbon steel up to 50mm, stainless steel up to 35mm, aluminum up to 60mm). Ideal for hot forging, cold extrusion, and precision shaping of complex metal parts.
- Stable & Durable Operation: Constructed with a high-strength cast steel frame (quenched and tempered for wear resistance) and heavy-duty friction discs (made of high-temperature-resistant alloy steel), ensuring minimal vibration and a service life of 15–20 years under standard operating conditions.
- Precision Control: Equipped with an adjustable sliding block stroke (150–300mm) and a mechanical pressure regulation system, allowing precise control of forging depth and pressure. The manual/electric hybrid control mode supports both skilled operator adjustments and semi-automated production.
- Energy Efficiency: Adopts a dual-motor friction drive system with variable speed control, reducing energy consumption by 15–25% compared to traditional single-motor friction presses. The flywheel energy storage design ensures high energy utilization during forging strokes.
- Safety & Ergonomics: Features a safety guardrail (compliant with global safety standards), emergency stop buttons, and a shock-absorbing workbench to protect operators. The ergonomic control panel (with clear pressure and stroke indicators) reduces operator fatigue during long shifts.
- Easy Maintenance: Designed with modular components (e.g., replaceable friction discs, easily accessible lubrication points) and a simplified mechanical structure, lowering maintenance difficulty and reducing downtime for repairs.
Product Specifications
- Basic Parameters:
- Nominal Force: 200kN (200T)
- Maximum Instantaneous Force: 500kN (500T)
- Sliding Block Stroke: 150mm–300mm (adjustable)
- Number of Strokes per Minute: 15–25 SPM (varies by forging process)
- Workbench Size: 800mm×600mm (length×width); 1000mm×700mm (optional large-size workbench)
- Sliding Block Bottom Surface Size: 600mm×500mm
- Drive System:
- Motor Power: 2×11kW (dual motors for friction drive)
- Friction Disc Material: High-temperature-resistant alloy steel (HT300)
- Flywheel Diameter: 1200mm; Flywheel Weight: 800kg (energy storage component)
- Control & Safety:
- Control Mode: Manual lever + electric button (optional PLC control upgrade)
- Safety Standards: Complies with CE, ISO 12100, ANSI B11.2, and GB/T 25712-2010
- Safety Features: Safety interlock guardrail, overload protection, and overheating alarm for motors
- Installation & Dimensions:
- Machine Weight: 12000kg (12 tons)
- Overall Dimensions (L×W×H): 2800mm×1800mm×3500mm
- Power Supply: 380V/400V/480V, 3-phase, 50/60Hz (customizable for regional voltage)
Wide-Ranging Industrial Applications
Our 200T friction press is a workhorse in medium-tonnage metal forging and forming sectors:
- Automotive Parts Manufacturing: Hot forging of crankshafts, connecting rods, gear blanks, and axle components; cold extrusion of bearing rings and brake calipers.
- Hardware & Fastener Production: Forging of high-strength bolts, nuts, rivets, and hand tool heads (e.g., wrench heads, hammer heads); shaping of door hinges and window hardware.
- Tool & Die Making: Precision forming of mold bases, die cores, and stamping dies; heat treatment auxiliary shaping of high-hardness tool steel parts.
- Aerospace & Defense: Medium-volume forging of small aircraft structural parts (e.g., wing brackets, landing gear components) and missile shell blanks (using high-strength alloy steel).
- Construction Machinery: Forging of excavator bucket teeth, loader arm pins, and hydraulic cylinder rods; shaping of heavy-duty structural bolts for construction equipment.
- Kitchenware & Household Goods: Cold forming of stainless steel cookware bottoms (for heat conduction enhancement) and aluminum pot handles; forging of metal decorative parts.
Customization & Service Support
- Tailored Upgrades: Offer optional upgrades such as PLC automatic control (with touchscreen HMI), automatic feeding systems (robotic arms or conveyor belts), and temperature monitoring for workpieces (for hot forging processes). Customize workbench size and sliding block stroke for specific part requirements.
- Installation & Training: On-site installation (with professional engineering team), equipment commissioning, and 1-week operator training (covering machine operation, maintenance, and safety protocols). Provide detailed operation and maintenance manuals in multiple languages.
- After-Sales Service: 24/7 global technical support (via phone, email, or video call), spare parts delivery (within 3–7 days for standard parts; 5–10 days for customized parts), and annual maintenance checks.
- Warranty: 2-year standard warranty on main components (frame, motors, friction discs); 1-year warranty on electrical parts. Extended warranty (up to 5 years) and preventive maintenance packages available.
- Compliance & Certification: All machines pass strict quality inspections before delivery and meet CE, ISO 9001, and industry-specific standards (e.g., IATF 16949 for automotive-related applications).
Why Choose Our 200T Friction Press?
With over 18 years of experience in manufacturing heavy-duty forging equipment, we have supplied 600+ 200T friction presses to customers in 35+ countries, earning a 96% customer satisfaction rate for performance and reliability. Our machines combine powerful forging capacity, energy efficiency, and easy maintenance—helping you reduce production costs while ensuring consistent part quality for medium-tonnage metal processing needs.
Contact our sales team today to request a product demo, technical datasheet, or personalized quote!
