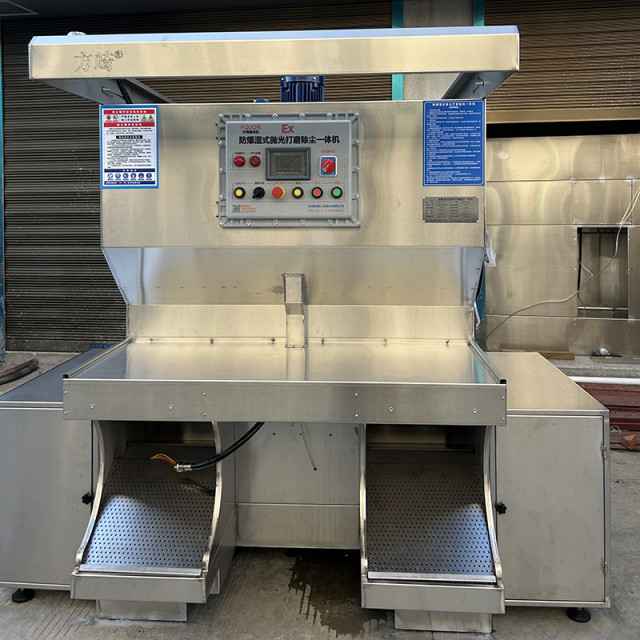

Explosion-Proof Wet Polishing & Dust Collection Integrated Machine: Safety-First Solution for Hazardous Polishing Tasks
Our explosion-proof wet polishing & dust collection integrated machine is a specialized industrial equipment engineered to deliver safe, efficient, and dust-free polishing and (grinding) performance in explosive or flammable environments. By combining advanced wet dust suppression technology with strict explosion-proof design (compliant with global hazardous area standards), it eliminates the risk of dust explosions while ensuring high-quality surface finishing—making it an indispensable tool for industries like metal processing (aluminum, magnesium), chemical, pharmaceutical, and oil & gas across global markets.
Core Advantages & Performance Highlights
- Certified Explosion-Proof Safety: Adopts an explosion-proof structure (Ex d IIB T4 Ga/Ex ia IIB T4 Ga) and uses explosion-proof motors, electrical components, and wiring (compliant with ATEX, IECEx, UL 1203, and GB 3836 standards). The sealed wet processing chamber prevents the accumulation of flammable dust (e.g., aluminum dust, magnesium dust) and eliminates ignition sources, ensuring safe operation in Zone 1/2 (gas) and Zone 21/22 (dust) hazardous areas.
- Efficient Wet Dust Collection: Integrates a high-pressure water mist system (10–15MPa) and cyclone dust separator, capturing 99.9% of polishing dust (particle size ≥ 0.5μm) at the source. The water-dust mixture is collected in a sealed sludge tank, avoiding secondary dust pollution—critical for protecting operator health and complying with environmental regulations (e.g., EPA, EU ETS).
- Dual-Function Polishing & Grinding: Equipped with replaceable polishing pads (for fine finishing) and grinding discs (for rough shaping), supporting processing of metals (aluminum, copper, stainless steel), composites, and stone. The variable-speed motor (500–3000rpm) allows adjustment of processing intensity to match material hardness, ensuring uniform surface quality (Ra ≤ 0.4μm for fine polishing).
- Intelligent Operation & Monitoring: Features a 7–10 inch explosion-proof touchscreen HMI (with anti-glare and waterproof design) and PLC control system. Enables real-time monitoring of water pressure, motor temperature, and dust collection efficiency, with automatic alarms for abnormal conditions (e.g., low water level, motor overload). Supports parameter storage (up to 100 sets) for different processing tasks.
- Durable & Low-Maintenance Design: Constructed with corrosion-resistant 316L stainless steel (for the processing chamber and sludge tank) and wear-resistant silicon carbide grinding components, ensuring long-term use in humid and dusty environments. The self-cleaning water filter reduces sludge buildup, and quick-change polishing/grinding heads minimize maintenance downtime (replacement within 3 minutes).
Product Specifications
- Processing Capabilities:
- Applicable Materials: Aluminum, magnesium, copper, stainless steel, composites, stone
- Processing Size: 50mm×50mm–1200mm×800mm (workpiece size); customizable for larger parts
- Polishing/Grinding Speed: 500–3000rpm (variable frequency control)
- Surface Finish: Ra ≤ 0.4μm (polishing); Ra ≤ 1.6μm (grinding)
- Dust Collection Efficiency: ≥ 99.9% (for particles ≥ 0.5μm)
- Explosion-Proof & Safety:
- Explosion-Proof Rating: Ex d IIB T4 Ga / Ex ia IIB T4 Ga
- Protection Class: IP65 (whole machine); IP67 (electrical components)
- Safety Standards: ATEX 2014/34/EU, IECEx, UL 1203, GB 3836.1-2010
- Water & Power System:
- Water Supply: 0.3–0.8MPa (tap water or recycled water); Water Consumption: 5–10L/h
- Power Supply: 380V/400V, 3-phase, 50/60Hz (explosion-proof transformer included)
- Motor Power: 3.7kW–11kW (explosion-proof AC motor)
- Dimensions & Weight:
- Overall Dimensions (L×W×H): 1800mm×1500mm×2200mm–2500mm×1800mm×2500mm
- Machine Weight: 800kg–1500kg (varies by model)
- Sludge Tank Capacity: 50L–200L
Wide-Ranging Industrial Applications
Our explosion-proof wet polishing & dust collection machine is trusted for safe processing in hazardous environments across key sectors:
- Metal Processing (Aluminum/Magnesium): Polishing of aluminum alloy auto parts (e.g., EV battery casings) and magnesium alloy aerospace components—eliminating flammable dust to prevent explosions.
- Chemical & Pharmaceutical: Grinding of chemical raw material blocks (e.g., catalyst particles) and polishing of stainless steel pharmaceutical equipment (e.g., reaction vessels)—ensuring compliance with GMP and explosion safety standards.
- Oil & Gas: Polishing of pipeline connectors and valve components (used in oil refineries and gas stations)—safe for Zone 1 hazardous areas with flammable gas.
- Automotive (EV): Finishing of aluminum alloy chassis parts and magnesium alloy motor housings—reducing dust pollution and meeting automotive-grade surface quality requirements.
- Aerospace: Grinding of titanium alloy structural parts and polishing of aluminum alloy aircraft panels—complying with strict explosion safety regulations in aerospace manufacturing facilities.
- Mining & Metallurgy: Polishing of metal ore samples and grinding of mineral processing equipment parts—safe for environments with flammable mineral dust.
Customization & Service Support
- Tailored Solutions: Offer custom designs for processing large/irregular workpieces (e.g., long pipelines, curved components) and add-on functions (e.g., automatic workpiece feeding, sludge drying systems). Provide explosion-proof upgrades for specific hazardous area classifications (e.g., Ex d IIC T6 Ga for high-risk environments).
- Installation & Training: On-site installation by certified explosion-proof engineers, equipment commissioning, and 1-week specialized training (covering safe operation, explosion-proof maintenance, and emergency handling). Provide detailed explosion-proof operation manuals and video tutorials in multiple languages.
- After-Sales Service: 24/7 global technical support (with engineers experienced in hazardous area equipment); spare parts delivery (within 3–7 days for explosion-proof components); annual explosion-proof inspection and certification.
- Warranty: 2.5-year standard warranty on main components (explosion-proof motor, processing chamber, dust collector); 1.5-year warranty on electrical parts. Extended warranty (up to 5 years) and preventive maintenance packages available.
- Compliance & Certification: All machines pass strict explosion-proof testing (dust explosion simulation, electrical spark testing) and environmental testing (dust collection efficiency) before delivery. Meet ISO 9001, ISO 14001, and OHSAS 18001 standards.
Why Choose Our Explosion-Proof Wet Polishing Machine?
With over 15 years of experience in hazardous area equipment manufacturing, we have supplied 400+ explosion-proof wet polishing machines to customers in 35+ countries, achieving a 98% customer satisfaction rate. Our product uniquely combines explosion safety, dust-free processing, and high-quality finishing—helping you meet strict safety regulations, protect operator health, and improve processing efficiency in hazardous environments.
Contact our sales team today to request a product demo (virtual or on-site in safe areas), technical datasheet, or personalized quote!
